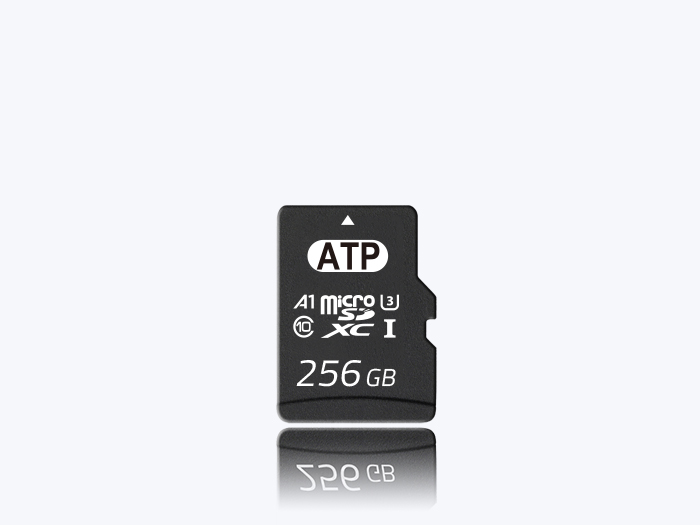

産業用 microSD カード

主な特長

  • SD Life Monitor
  • Advanced Wear Leveling
  • SiP (System in Package)
  • AutoRefresh technology
  • Dynamic Data Refresh
  • Power failure protection
  • Industrial temperature
  • Joint Validation
  • 100% MP Level Test

説明

ちいさいながらも 機能豊富なおよび信頼できる取り外し可能なストレージソリューションとして、データ記録、ナビゲーションと監視システム、車中情報娯楽番組(IVI)、ドライブレコーダー、および他の使用条件の厳しいアプリケーションにおいて、広く使われています。
データの保全を保証するために、ATP microSDカードの機能において、AutoRefreshにより”read disturb”の発生を防ぎ、Dynamic Data Refreshによりデータ保持の管理を行い、頻繁にリードされるエリア、ほとんどリードされないエリアでのエラー防止しています。
Sudden Power-Off Recovery (SPOR)機能は、電源変動、予期しない電源遮断事象にたいし動作します。

仕様最新のアップデート: 2022-08-05 13:16

microSD/microSDHC/microSDXC
Product LinePremiumPremiumPremiumSuperiorSuperiorSuperiorSuperiorSuperiorSuperiorSuperiorSuperior
NamingS800PiS750PiS700PiS750ScS700ScS650SiS650ScS600SiS600ScS600SiaS600Sc
Interface512 MB to 2 GB, HS mode; 4 GB to 8 GB, UHS-IUHS-IUHS-IUHS-IUHS-IUHS-IUHS-IUHS-IUHS-IUHS-IUHS-I
Flash TypeSLC3D Pseudo SLC3D Pseudo SLC3D Pseudo SLC3D Pseudo SLC3D TLC3D TLC3D TLCMLC3D TLC3D TLC
Form FactormicroSD CardmicroSD Card microSD CardmicroSD Card microSD CardmicroSD CardmicroSD CardmicroSD CardmicroSD CardmicroSD CardmicroSD Card
Operating Temperature-40°C to 85°C-40°C to 85°C-40°C to 85°C-25°C to 85°C-25°C to 85°C-40°C to 85°C-25°C to 85°C-40°C to 85°C-25°C to 85°C-40°C to 85°C-25°C to 85°C
Power Loss Protection OptionsFirmware BasedFirmware Based Firmware BasedFirmware Based Firmware BasedFirmware BasedFirmware BasedFirmware BasedFirmware BasedFirmware BasedFirmware Based
Optional SED Features-- -- -------
Capacity512 MB to 8 GB8 GB to 64 GB8 GB to 64 GB8 GB to 64 GB8 GB to 64 GB32 GB to 256 GB32 B to 256 GB32 GB to 256 GB4 GB to 8 GB32 GB to 256 GB32 GB to 256 GB
Sequential Read (MB/s) up to8099959995969696689696
Sequential Write (MB/s) up to3982748274656570247070
Endurance (TBW)1 up to192 TB3840 TB512 TB3840 TB512 TB512 TB512 TB307 TB10 TB307 TB307 TB
Reliability MTBF @ 25°C>5,000,000 hours>2,000,000 hours>3,000,000 hours>2,000,000 hours>3,000,000 hours>2,000,000 hours>2,000,000 hours>2,000,000 hours>2,000,000 hours>2,000,000 hours>2,000,000 hours
Reliability Number of Insertions20,000 (SDA spec minimum 10,000)20,000 (SDA spec minimum 10,000)20,000 (SDA spec minimum 10,000)20,000 (SDA spec minimum 10,000)20,000 (SDA spec minimum 10,000)20,000 (SDA spec minimum 10,000)20,000 (SDA spec minimum 10,000)20,000 (SDA spec minimum 10,000)20,000 (SDA spec minimum 10,000)20,000 (SDA spec minimum 10,000)20,000 (SDA spec minimum 10,000)
Dimensions: L x W x H (mm)15.0 x 11.0 x 1.015.0 x 11.0 x 1.015.0 x 11.0 x 1.015.0 x 11.0 x 1.015.0 x 11.0 x 1.015.0 x 11.0 x 1.015.0 x 11.0 x 1.015.0 x 11.0 x 1.015.0 x 11.0 x 1.015.0 x 11.0 x 1.015.0 x 11.0 x 1.0
CertificationsCE, FCC, UKCA, RoHSCE, FCC, UKCA, RoHSCE, FCC, UKCA, RoHSCE, FCC, UKCA, RoHSCE, FCC, UKCA, RoHSCE, FCC, UKCA, RoHSCE, FCC, UKCA, RoHSCE, FCC, UKCA, RoHSCE, FCC, UKCA, RoHSCE, FCC, UKCA, RoHSCE, FCC, UKCA, RoHS
Warranty5 years 5 years5 years2 years2 years2 years2 years2 years2 years2 years2 years

* Under highest Sequential write value. May vary by density, configuration and applications.

注文情報

Hot Items Ordering Information
Form Factor Product Line Flash Type Capacity Operating Temperature P/N
microSD
S750Pi 3D pSLC 8 GB ~ 64 GB -40C~85C AF8GUD4A-EBAIM
AF16GUD4A-EBAIM
AF32GUD4A-EBAIM AF64GUD4A-EBAIM
S750Pc 3D pSLC 8 GB ~ 64 GB -25C~85C AF8GUD4A-EBAXM AF16GUD4A-EBAXM AF32GUD4A-EBAXM AF64GUD4A-EBAXM
S650Si 3D TLC 32 GB ~ 256 GB -40C~85C AF32GUD4-EBAIM AF64GUD4-EBAIM AF128GUD4-EBAIM AF256GUD4-EBAIM
S650Sc 3D TLC 32 GB ~ 256 GB -25C~85C AF32GUD4-EBAXM AF64GUD4-EBAXM AF128GUD4-EBAXM AF256GUD4-EBAXM

技術View All Technologies

テクノロジー & 追加サービス製品ラインナップ
PremiumSuperior
Life Monitor
Life Monitor
customizable
customizable
Sudden Power-Off Recovery (SPOR)
Sudden Power-Off Recovery (SPOR)
available
available
AutoRefresh
AutoRefresh
available
available
Advanced Wear Leveling
Advanced Wear Leveling
available
available
Dynamic Data Refresh
Dynamic Data Refresh
customizable
available
Auto-Read Calibration
Auto-Read Calibration
customizable
Secure Erase
Secure Erase
available
available
Industrial Temperature
Industrial Temperature
available
customizable
SiP (System in Package)
SiP (System in Package)
available
available
Complete Drive Test
Complete Drive Test
available
available
Joint Validation
Joint Validation
customizable
customizable
customizable:プロジェクトごとにカスタマイズ対応が可能
