説明

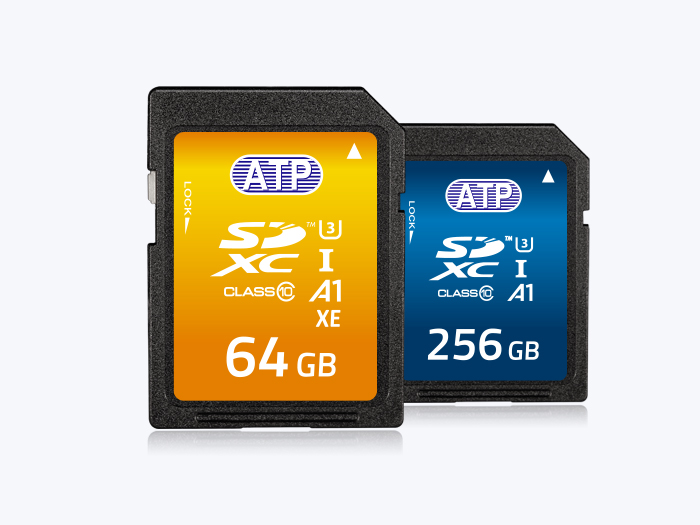

ATP 社SDカードはデータ転送とストレージ拡張のための小さなホスト機器から容易に脱着で可能であることにより、産業機器と自動車用途に理想的なストレージ機器です。 ATP SDカードは過酷な条件のもとで信頼可能に機能し、オートメーション、ネットワーキング、医療、さらに広く産業のアプリケーションにおいて要求される長寿命に設計されています。
ATP SDカードは、マップ／ナビゲーション・システム、車中情報娯楽番組（IVI）、高度ドライバー補助システム（ADAS）などのより高いデータ信頼性が要求されるアプリケーションにおいて、主要な自動車OEM／ティア1のサプライヤ、システム開発者とサービスプロバイダーへ高い品質、耐久力、および信頼性を提供しています。 このような要求に対し広い温度帯域、ダストや振動、衝撃および電源低下または突然のパワーオフ事象への解決策を持って対応を行っています。
仕様最新のアップデート: 2024-03-21 11:00
| SD/SDHC/SDXC Card | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Line | Premium | Premium | Premium | Premium | Premium | Premium | Superior | Superior | Superior | Superior | Superior | Superior | Superior |
| Naming | S800p | S750Pi | S750Pc | S700Pi | S700Pc | S700Pi / Pc | S650Si | S650Sc | S600Si | S600Sc | S600Sc | S600Si / Sc | S600Si / Sc |
| Interface | 512 MB~2 GB, HS mode 4 GB~8 GB, UHS-I | UHS-I | UHS-I | UHS-I | UHS-I | UHS-I | UHS-I | UHS-I | UHS-1 | UHS-I | UHS-I | UHS-I | UHS-I |
| Flash Type | SLC | 3D TLC (pSLC mode) | 3D TLC (pSLC mode) | 3D TLC (pSLC mode) | 3D TLC (pSLC mode) | 2D MLC (pSLC mode) | 3D TLC | 3D TLC | 3D TLC | 3D TLC | MLC | MLC / 3D TLC | 2D MLC |
| Form Factor | SD Card | SD Card | SD Card | SD Card | SD Card | SD Card | SD Card | SD Card | SD Card | SD Card | SD Card | SD Card | |
| Operating Temperature | -40°C to 85°C | -40°C to 85°C | -25°C to 85°C | -40°C to 85°C | -25°C to 85°C | -40°C to 85°C / -25°C to 85°C | -40°C to 85°C | -25°C to 85°C | -40°C to 85°C | -25°C to 85°C | -25°C to 85°C | -40°C to 85°C / -25°C to 85°C | -40°C to 85°C / -25°C to 85°C |
| Power Loss Protection Options | Firmware Based | Firmware Based | Firmware Based | Firmware Based | Firmware Based | Firmware Based | Firmware Based | Firmware Based | Firmware Based | Firmware Based | Firmware Based | Firmware Based | |
| Optional SED Features | - | - | - | - | - | - | - | - | - | - | - | - | |
| Capacity | 512 MB to 8 GB | 16 GB to 128 GB | 16 GB to 128 GB | 8 GB to 32 GB | 8 GB to 32 GB | 4 GB to 8 GB | 64 GB to 512 GB | 64 GB to 512 GB | 32 GB to 128 GB | 32 GB to 128 GB | 8 GB to 16 GB | 8 GB to 256 GB | 8 GB to 16 GB |
| Sequential Read (MB/s) up to | 69 | 97 | 97 | 98 | 98 | 97 | 97 | 97 | 94 | 94 | 68 | 96 | 97 |
| Sequential Write (MB/s) up to | 39 | 82 | 82 | 80 | 80 | 82 | 76 | 76 | 55 | 55 | 23 | 65 | 37 |
| Endurance (TBW)1 up to | 192 TB | 12,670 TB | 12,670 TB | 582 TB | 582 TB | 240 TB | 2,000 TB | 2,000 TB | 77 TB | 77 TB | 19 TB | 307 TB | 48 TB |
| Reliability MTBF @ 25°C | >5,000,000 hours | >3,000,000 hours | >3,000,000 hours | >3,000,000 hours | >3,000,000 hours | >2,000,000 hours | >2,000,000 hours | >2,000,000 hours | >2,000,000 hours | >2,000,000 hours | >2,000,000 hours | >2,000,000 hours | >2,000,000 hours |
| Reliability Number of Insertions | 20,000 (SDA spec minimum 10,000) | 20,000 (SDA spec minimum 10,000) | 20,000 (SDA spec minimum 10,000) | 20,000 (SDA spec minimum 10,000) | 20,000 (SDA spec minimum 10,000) | 20,000 (SDA spec minimum 10,000) | 20,000 (SDA spec minimum 10,000) | 20,000 (SDA spec minimum 10,000) | 20,000 (SDA spec minimum 10,000) | 20,000 (SDA spec minimum 10,000) | 20,000 (SDA spec minimum 10,000) | 20,000 (SDA spec minimum 10,000) | 20,000 (SDA spec minimum 10,000) |
| Dimensions (mm) | 32.0 x 24.0 x 2.1 | 32.0 x 24.0 x 2.1 | 32.0 x 24.0 x 2.1 | 32.0 x 24.0 x 2.1 | 32.0 x 24.0 x 2.1 | 32.0 x 24.0 x 2.1 | 32.0 x 24.0 x 2.1 | 32.0 x 24.0 x 2.1 | 32.0 x 24.0 x 2.1 | 32.0 x 24.0 x 2.1 | 32.0 x 24.0 x 2.1 | 32.0 x 24.0 x 2.1 | 32.0 x 24.0 x 2.1 |
| Certifications | CE, FCC, UKCA, RoHS | CE, FCC, UKCA, RoHS | CE, FCC, UKCA, RoHS | CE, FCC, UKCA, RoHS | CE, FCC, UKCA, RoHS | CE, FCC, UKCA, RoHS | CE, FCC, UKCA, RoHS | CE, FCC, UKCA, RoHS | CE, FCC, UKCA, RoHS | CE, FCC, UKCA, RoHS | CE, FCC, UKCA, RoHS | CE, FCC, UKCA, RoHS | |
| Warranty | 5 years | 5 years | 5 years | 5 years | 5 years | 2 years | 2 years | 2 years | 2 years | 2 years | 2 years | 2 years | |
1 Under highest Sequential write value. May vary by density, configuration and applications.
技術View All Technologies
| テクノロジー ＆ 追加サービス | 製品ラインナップ | |
|---|---|---|
| Premium | Superior | |
 | customizable | customizable |
 | available | available |
 | customizable | customizable |
 | available | available |
 | customizable | customizable |
 | customizable | customizable |
 | available | available |
 | available | available |
 | available | available |
 | available | available |
 | customizable | customizable |
customizable:プロジェクトごとにカスタマイズ対応が可能
