Transportation has gone a long way since Leonardo da Vinci invented the self-propelled cart in the 15th century, which became the forerunner of the modern automobile. Today’s vehicles are no longer just means to arrive at a certain destination but have transformed into hubs of information, entertainment and communication. Many vehicles can now perform certain functions autonomously as automotive innovations drive unprecedented levels of connectivity and automation. In a few more years, vehicles will run with little to no human intervention. At the heart of these spectacular capabilities are colossal amounts of data from numerous sensors that monitor and perceive what is happening inside and outside the car. Self-driving cars, for example, generate about 4 TB of data daily in just an hour and a half of driving. Technologies such as advanced driver assistance systems (ADAS) and driver monitoring systems (DMS) encompass a wide range of solutions that enable vehicular intelligence for making instant decisions based on situational understanding to ensure driving comfort and safety by drastically reducing accidents resulting from human error.
While on the road, vehicles face numerous challenges. Unpredictable weather shifts, vibration, humidity and extreme temperatures are just a few. Storage media for the automotive market should perform consistently, without any drops in performance over time. As such, they need robust memory and storage solutions that can hurdle rigorous environmental, power and thermal challenges to ensure safer and more comfortable driving.
They should have the ability to perform in critical situations such as a sudden power loss or an accident, and should have the following characteristics:
• Flexibility, with a wide operating temperature range
• Reliability and power efficiency
• Have the ability to detect and correct errors
All-Terrain Solutions for the Road Ahead
The protective, rugged design of ATP's memory and storage solutions enables them to withstand variable environmental conditions; the compact size allows placement in small embedded vehicle systems; and, the different capacities and performance capabilities make sure there is an ATP solution that fits specific automotive needs.
- Wide Temperature support
- System-In-Package (SD card series): IP57 / IP67 waterproof, dustproof
- ESD proof
- Enhanced shock resistance
- AutoRefresh read disturb protector
- Dynamic Data Refresh data retention protection
- Sudden Power-Off Recovery* / PowerProtector technology*
- S.M.A.R.T. device health monitoring tool
* May vary by product or project support.
All-Terrain Solutions for the Road Ahead
Certified Automotive Grade
All ATP automotive-grade products are certified according to leading industry standards.
- VDA 6.3/APQP/ASPICE*
- Certifications: ISO9001, ISO14001, IATF 16949*
- Product Validation: PPAP*
- International Material Data System (IMDS)
- Continuous improvement — 8D reports and failure analysis
* May vary by product or project support.
Engineering & Testing Capabilities
- ATP IVI Test Plan
- Selected AEC-Q100 test items and conditions approved by customers
- Power Cycling test: ATP unique F/W and testing script
- ATP NAND Flash IC Level Test (Data Retention, Endurance, Read Disturbance)
- Joint Validation: compatibility and function tests with IVI systems
- Joint Development: software development with IVI systems
- Rapid Diagnostic Test (RDT)
Connected and autonomous vehicles have a diverse range of data storage needs, so storage devices should be chosen wisely based on what they will be used for. Here some common examples:
In-Vehicle Infotainment (IVI) & Navigation
Vehicles with IVI systems allow users to play audio content, enjoy rear-seat entertainment such as movies, watch the news, play games and more. Navigation systems provide 3D maps, directions based on given criteria such as the shortest or fastest routes, traffic conditions and weather forecasts.
Drive Recorder/Event Data Recorder (EDR)
Popularly referred to as a dash camera or dash cam, a drive recorder/EDR is an onboard camera that continuously records what is happening during the trip. It is typically installed on the front/rear windscreen or windows. Some cameras record not only the view outside but also provide the interior of the vehicle and can serve as tachographs recording important vehicle information such as acceleration/deceleration, speed, steering angle and more. Dash cams are useful in providing video evidence of road accidents, traffic violations or any unusual event.
Function as a ""bridge"" where all data going to or coming from the cloud goes through. It also allows data to be stored, analyzed and processed at or closer to the data source rather than in a centralized or cloud-based location. It offloads the network, cuts transmission costs, and optimizes the data collected for immediate insight or swift response.
Fleet Surveillance/Management Systems
help ensure the efficient and secure delivery of goods by tracking vehicle location and condition, monitoring road and weather conditions, optimizing delivery routes, and even analyzing driver behaviors. Overall benefits include operational cost savings, investment protection and more efficient logistics.
Common Advanced Driver Assistance Systems (ADAS) technologies enable vehicles to perform certain functions autonomously or with little to no human intervention; for example, adaptive cruise control, automatic electronic braking, lane departure warning, self-parking, and forward and rear collision warning. Self-aware vehicles equipped with Driver Monitoring System (DMS) can now provide understanding of the driver’s state in real time and can make instant decisions based on situational insight to ensure safety. Driver drowsiness detection, for example, can enhance vehicle systems for safer and better driving to reduce road fatalities by minimizing human error.
- ATP_All-Terrain Automotive Storage Solutions for the Road Ahead
Monitors the error bit level in every operation. Before the error bit in a block reaches or exceeds the preset threshold value, AutoRefresh moves the data to a healthy block, thus preventing the controller from reading blocks with too many error bits and averting read disturbance and data corruption.
Operational stability in extreme temperatures from -40°C to 85°C.
Dynamic Data Refresh
Runs automatically in the background to reduce the risk of read disturbance and sustain data integrity in seldom-accessed areas by sequentially scanning the user area flag record without affecting the read/write operation. The data that has been completely moved to another block will be read and compared with the source data to ensure data integrity.

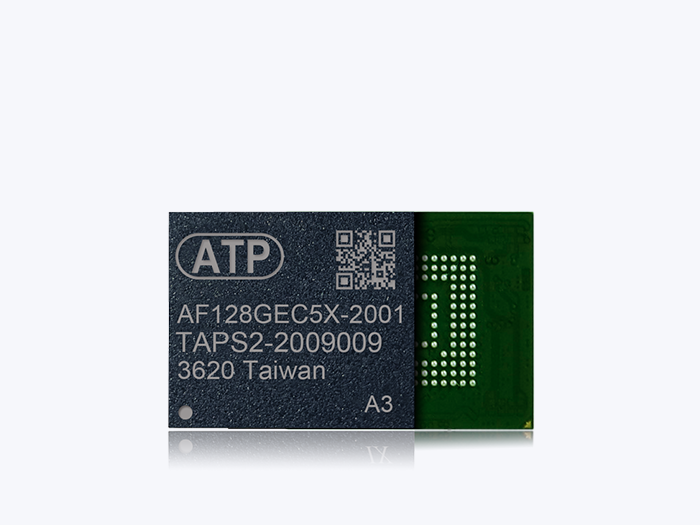

|Product Name||Industrial Grade||Industrial Grade||Industrial Grade||Automotive Grade 3||Automotive Grade 3||Automotive Grade 2||Automotive Grade 2|
|IC Package||153-ball FBGA||153-ball FBGA||153-ball FBGA||153-ball FBGA||153-ball FBGA||153-ball FBGA||153-ball FBGA|
|JEDEC Specification||v4.41||v5.1, HS400||v5.1, HS400||v5.1, HS400||v5.1, HS400||v5.1, HS400||v5.1, HS400|
|Flash Type||Native SLC||3D SLC Mode||3D NAND||3D SLC Mode||3D NAND||3D SLC Mode||3D NAND|
|Density*||1 GB to 2 GB||8 GB to 64 GB||16 GB to 128 GB||8 GB to 64 GB||16 GB to 128 GB||8 GB to 64 GB||16 GB to 128 GB|
|Bus Speed Modes||x1 / x4 / x8||x1 / x4 / x8||x1 / x4 / x8||x1 / x4 / x8||x1 / x4 / x8||x1 / x4 / x8||x1 / x4 / x8|
|Performance** Seq. Read/Write up to (MB/s)||31 / 23||300 / 240||300 / 170||300 / 240||300 / 170||300 / 240||300 / 170|
|Performance** Random Read/Write up to (IOPS)||750 / 1000||15K / 30K||15K / 30K||15K / 30K||15K / 30K||15K / 30K||15K / 30K|
|Operating Temperature||-40°C to 85°C (Industrial)||-40°C to 85°C (Industrial)||-40°C to 85°C (Industrial)||-40°C to 85°C (AEC-Q100 Grade 3)||-40°C to 85°C (AEC-Q100 Grade 3)||-40°C to 105°C (AEC-Q100 Grade 2)||-40°C to 105°C (AEC-Q100 Grade 2)|
|Reliability Max. TBW**||90 TB||1320 TB||824 TB||1320 TB||824 TB||1213 TB||309 TB|
|Reliability MTBF @ 25°C||> 2,000,000 Device hours||> 2,000,000 Device hours||> 2,000,000 Device hours||> 2,000,000 Device hours||> 2,000,000 Device hours||> 2,000,000 Device hours||> 2,000,000 Device hours|
|ICC (Typical RMS in Read/Write) mA||93||135 / 155||135 / 180||135 / 155||135 / 180||135 / 155||135 / 180|
|ICCQ (Typical RMS in Read/Write) mA||69||110 / 95||110 / 100||110 / 95||110 / 100||110 / 95||110 / 100|
|Dimensions: L x W x H (mm)||11.5 x 13.0 x 1.0||11.5 x 13.0 x 1.3 (max.)||11.5 x 13.0 x 1.3 (max.)||11.5 x 13.0 x 1.3 (max.)||11.5 x 13.0 x 1.3 (max.)||11.5 x 13.0 x 1.3 (max.)||11.5 x 13.0 x 1.3 (max.)|
*Low-density parity-check error correcting code. By product support.
**All performance is collected or measured using ATP proprietary test environment, without file system overhead.
