ATP Electronics’ 11K P/E Cycles PCIe Gen 4x4 Industrial SSDs Offer Highest Native TLC Endurance with 8 TB Max. Capacity

2025-06-24



ATP Electronics, a global leader in specialized storage and memory solutions, has once again achieved a breakthrough in extending the endurance of its industrial 3D triple level cell solid state drives (3D TLC SSDs).

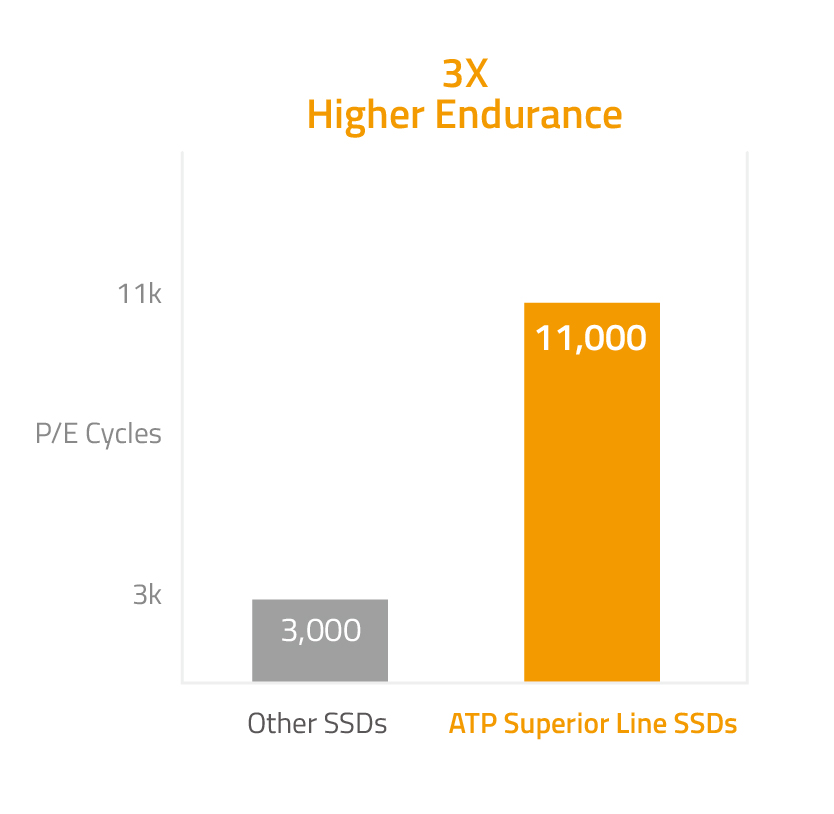

The N651Si/N651Sc Series now boasts an unparalleled 11,000 program/erase (P/E) cycles endurance — an unprecedented 120% leap from its initial published endurance of 5,000 cycles, making these solutions the highest-endurance industrial native TLC SSDs built on 512 Gb integrated circuits (IC) package.

This remarkable achievement is made possible through ATP’s outstanding capabilities that extend the inherent qualities of the NAND flash. The use of prime NAND package, strict NAND IC characterization, 100% NAND screening and validation capabilities, as well as ATP’s proprietary firmware, specialized hardware configurations, and own-developed technologies made this extraordinary feat possible.

ATP’s comprehensive testing approach ensures thorough assessment of the NAND flash’s overall endurance under different test methods to enable the trailblazing achievement of 11K P/E cycles endurance. The methodology evaluates performance across various aspects, including initial read/write operations, endurance (P/E cycles), data retention, cross-temperature behavior, and read disturb characteristics. Rigorous testing, which includes error correct reliability, erase/program/read (EPR), and other endurance tests, demonstrates that the N651Si/N651Sc Series SSDs offer robust performance and endurance characteristics that meet suitability requirements for high-endurance applications under various conditions.

With this endurance boost, the N651Si/N651Sc Series SSDs surpass the average TLC performance and lifespan, making these SSDs ideal for write-intensive workloads.

Translating to a drive-level endurance of 1 drive write per day (DWPD) with default 7% overprovisioning (OP), along with its wide 125°C operating range for I-Temp N651Si (-40°C to 85°C), the 11K solutions offer the best cost-per-endurance and total cost of ownership (TCO commercial value compared with competing 3K solutions.



The 11K solution covers ATP’s PCIe Gen 4x4 M.2/U.2/E1.S SSDs, CFexpress, and SD/microSD cards that have already been mass produced, with implementation plans on the latest refresh of SATA SSDs.



Performance Leadership

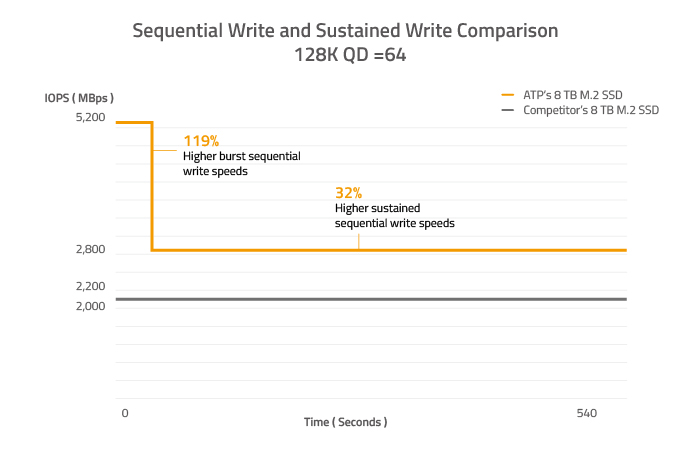

ATP’s N651Sc 8TB M.2 SSD model delivers measurable improvements over comparable 8 TB industrial SSDs, offering up to 119% higher sequential write speeds, while sustained write speeds are 32% higher.





Breakthrough Exclusive SSD Technologies


AcuCurrent Technology: Innovative Signal Integrity Optimization

AcuCurrent dynamically fine-tunes the SSDs in real time to ensure optimal signal integrity across all current routes.

It fortifies SSD product lifetime and reliability through dynamic, temperature-responsive adjustments that minimize errors and unnecessary read retries, thus potentially reducing bad block counts and preserving spare blocks. It also ensures stable performance across a wide range of operating ranges up to 125°C, enhancing the SSD's resilience to environmental and temperature variations.

The following table shows how AcuCurrent’s dynamic settings eliminate unnecessary read retries compared with typical fixed settings.



Driving Setting* SSD #1
Read Retry Count
@70C		 SSD #2
Read Retry Count
@70C		 SSD #3
Read Retry Count
@70C		 SSD #4
Read Retry Count
@70C
Fixed setting 240 6 622 687
Dynamic setting 0 0 0 0



AcuCurrent is initially available on E1.S SSDs, with firmware adoption plans on M.2 and U.2 SSDs.

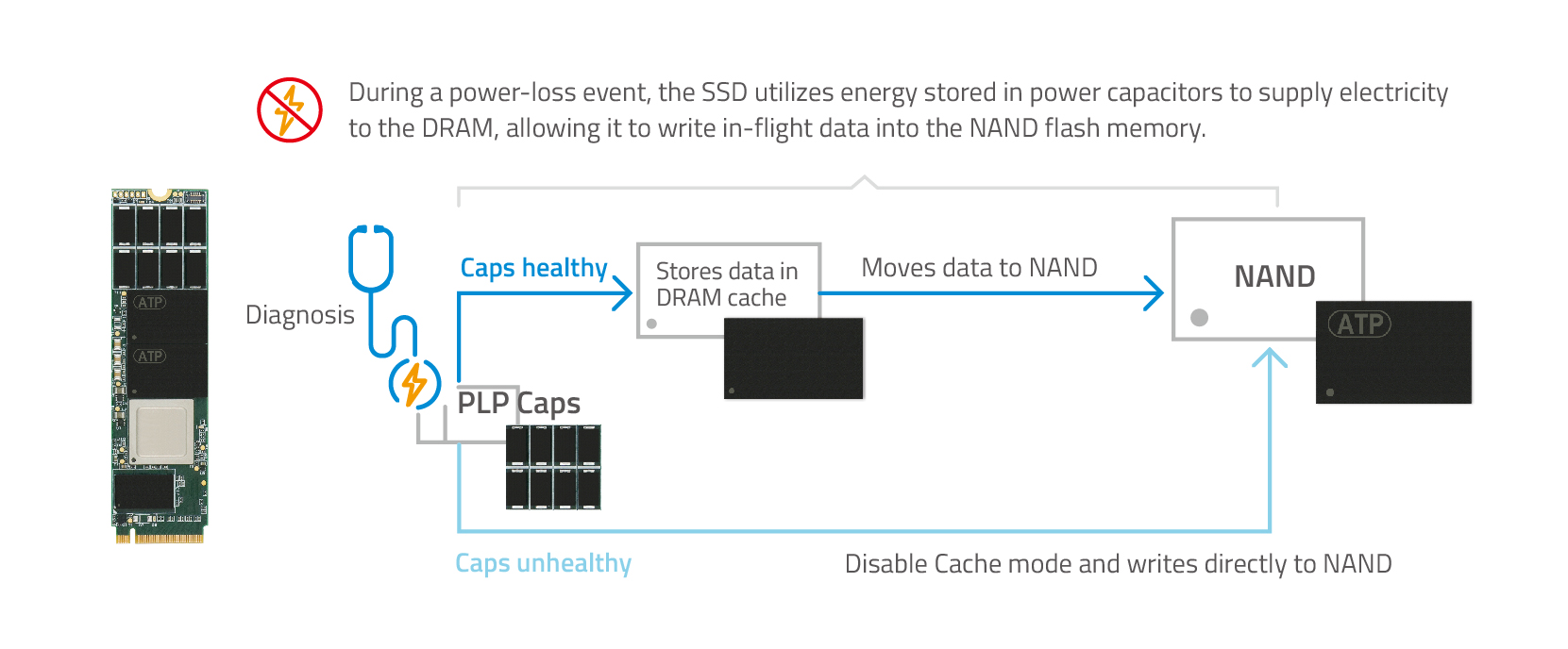

ATP PLP Diag Technology: Proactive PLP Capacitor Health Check

PLP Diag averts power loss protection (PLP) mechanism failure by proactively checking the functionality and health status of the polymer tantalum capacitors.

If capacitors fail, the SSD switches to Direct TLC mode, bypassing DRAM caching for writes. Users can also verify the PLP status through SMART commands, ensuring continuous data protection and system reliability.





Product Specifications



  PCIe® Gen4 NVMe M.2 SSD PCIe® Gen4 NVMe U.2 SSD PCIe® Gen4 NVMe E1.S SSD
Product Line
 Superior Superior Superior
N651Si / N651Sc N651Si N651Si
Interface PCIe G4 x4 PCIe G4 x4 PCIe Gen4x4
Flash Type 3D TLC 3D TLC 3D TLC
Form Factor M.2 2280-D6-M / M.2 2280-D5-M / M.2 2280-D2-M U.2 E1.S
Operating Temperature -40°C to 85°C / 0°C to 70°C -40°C to 85°C -40°C to 85°C
Power Loss Protection Options Hardware + Firmware Based
/ Firmware Based 1		 Hardware + Firmware Based Hardware + Firmware Based
Optional SED Features AES 256-bit Encryption, TCG Opal 2.0 AES 256-bit Encryption, TCG Opal 2.0 AES 256-bit Encryption, TCG Opal 2.0
Capacity 240 GB to 7.68 TB 960 GB to 7.68 TB 960 GB to 7.68 TB
Performance
Sequential Read (MB/s) up to 6,450 6,000 6,400
Sequential Write (MB/s) up to 6,050 6,000 6,100
Random Reads IOPS up to 1,091,000 870,000 1,000,000
Random Writes IOPS up to 1,245,000 1,230,000 1,200,000
Endurance and Reliability
Endurance (TBW)2 up to 76,400 TB 76,000 TB 79,000 TB
Reliability
MTBF @ 25°C		 >3,000,000 hours >3,000,000 hours >3,000,000 hours
Others
Dimensions (mm) 80 × 22 × 3.85 mm
80 × 22 × 3.9 mm
80 × 22 × 3.6 mm
Optional 8 mm heatsink		 100 x 69.85 x 15 118.75 x 33.75 x 9.5
Certifications CE, FCC, BSMI, UKCA, RoHS, REACH, UL RoHS/VCCI/CE/FCC/UKCA RoHS/VCCI/CE/FCC/UKCA
Warranty 3 years 3 years 5 years
1 M.2 2280-D6-M (max height: 3.85mm) offers hardware-based power loss protection, while M.2 2280-D5-M (max height: 3.9mm) and M.2 2280-D2-M (max height: 3.6mm)
provide firmware-based power loss protection.
2 Under highest Sequential write value. May vary by density, configuration and applications.



For more information on the ATP N651Si/N651Sc PCIe® Gen 4x4 11K P/E cycles solutions, visit:

PCIe® Gen4 NVMe M.2 SSD: https://www.atpinc.com/products/industrial-gen4-nvme-M.2-ssd

PCIe® Gen4 NVMe U.2 SSD: https://www.atpinc.com/products/industrial-gen4-U.2-ssd

PCIe® Gen4 NVMe E1.S SSD: https://www.atpinc.com/products/industrial-enterprise-edsff-e1s-ssd
