e.MMC Smaller Footprint
Key Features
- Smaller footprint package size*
- Auto Power-Saving Mode and Power Optimization technologies*
- Robust Data Integrity* (AutoRefresh and Dynamic Data Refresh)
- Complies with JEDEC e.MMC v5.1 Standard (JESD84-B51)
- 153-ball FBGA (RoHS compliant, "green package")
- LDPC ECC engine*
Description

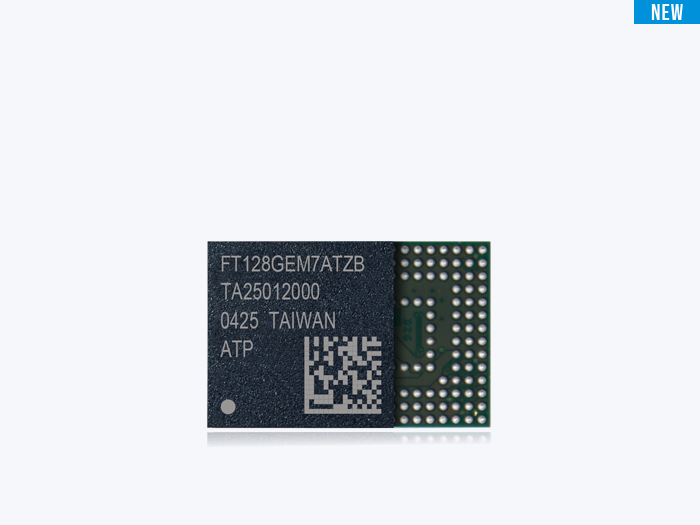

ATP Electronics introduces the E600 e.MMC, a groundbreaking flash storage solution engineered for industrial applications demanding high performance, rugged reliability, and ultra-low power consumption. With a remarkably small 7.2 x 7.2 mm footprint, the E600Vc delivers up to 128 GB of storage, advanced power management, and robust data protection features, all while adhering to the JEDEC e.MMC 5.1 standard. Designed for seamless integration and optimal performance, the E600Vc Series redefines the possibilities for embedded storage in space-constrained and power-sensitive environments.
SpecificationsLatest Update: 2025-12-01 15:45
| Smaller Footprint e.MMC | |||
|---|---|---|---|
| Product Name | Smaller Footprint e.MMC | Smaller Footprint e.MMC | Smaller Footprint e.MMC |
| Product Line | Value | Value | Value |
| Naming | E600Vc | E600Vi | E600Vc |
| Flash Type | 3D TLC | 3D TLC | 3D TLC |
| IC Package | 153-ball FBGA | 153-ball FBGA | 153-ball FBGA |
| JEDEC Specification | v5.1, HS400 | v5.1, HS400 | v5.1, HS400 |
| Power Loss Protection Options | Firmware Based | Firmware Based | Firmware Based |
| Operating Temperature | -25°C to 85°C | -40°C to 85°C | -25°C to 85°C |
| Capacity | 64 GB to 128 GB | 32 GB to 64 GB | 32 GB to 64 GB |
| Sequential Read/Write up to (MB/s) (Max.) | 240 / 220 | 290 / 225 | 290 / 225 |
| Bus Speed Modes | x1 / x4 / x8 | x1 / x4 / x8 | x1 / x4 / x8 |
| ICC (Typical RMS in Read/Write) mA (Max.) | 35 / 45 | 100 / 110 | 100 / 110 |
| ICCQ (Typical RMS in Read/Write) mA (Max.) | 60 / 55 | 105 / 100 | 105 / 100 |
| Endurance TBW (Max.) 1 | 24 TB | 55 TB | 55 TB |
| Reliability MTBF @ 25°C | >3,000,000 hours | >2,000,000 hours | >2,000,000 hours |

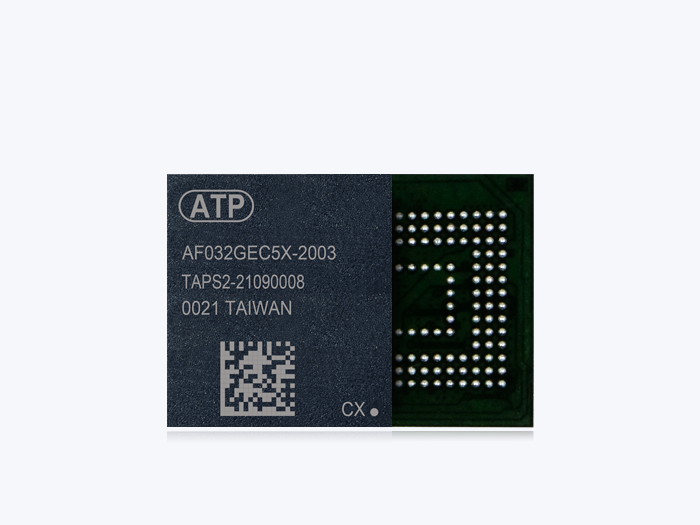

| Dimensions (mm) | 7.2 x 7.2 x 0.8 | 9.0 x 10.0 x 0.8 | 9.0 x 10.0 x 0.8 |
| Certifications | RoHS, REACH | RoHS, REACH | RoHS, REACH |
| Warranty | One Year | One Year | One Year |
1 All performance is collected or measured using ATP proprietary test environment, without file system overhead.
Related Resources
No doubt, each ATP e.MMC is manufactured to the highest and most stringent standards to make sure that it meets the rigid requirements of industrial applications. The ATP culture of excellence, however, extends after the product is finished. Further processes are taken to ensure that each product coming out of ATP's manufacturing facilities meet and even exceed expectations.
Below is a sneak peek into the meticulous processes that the ATP e.MMC goes through before it is shipped out.
|
|
Ensuring Product Traceability Laser imprints important information to identify each piece for accurate tracking and efficient inventory management. |
|
Rapid Diagnostic Test (RDT) RDT is performed to evaluate product reliability under extreme temperatures and to catch early and latent defects. ATP e.MMC devices are loaded into a specially designed RDT chamber for thermal cycling tests at both low (-40°C) and high (85°C) temperatures. ATP can perform high-volume testing according to customer request.
|
|
|
Automated Final Screening A special machine performs high-speed automated initialization and screening to make sure that errors and failed parts not caught during the production stage are effectively screened out before the product is packaged.
|
|
|
Protective Packaging Finally, the ATP e.MMC is vacuum-sealed, removing all the air from the packaging, including humidity and moisture that could cause corrosion. Vacuum packaging also safeguards the ATP e.MMC against environmental hazards that could cause damage while the devices are stored or in transit.
|
|
ATP delivers total solutions by manufacturing not only best-in-class products, but also offering top-notch services. By project support and customer request, ATP offers value-added services such as Joint Validation, where ATP conducts compatibility and function tests with client-supplied host devices and systems to proactively detect and minimize failures that may not have been caught in production tests. ATP also guarantees long product cycles with a longevity commitment of over 5 years for MLC NAND-based e.MMC.
Find out how the industrial e.MMC and other ATP flash memory and storage products can meet your diverse data storage requirements.
