USB Drive

Key Features

  • Global wear leveling
  • Bad block management algorithm
  • High reliability
  • “Plug and play” connection support hot swap

Description

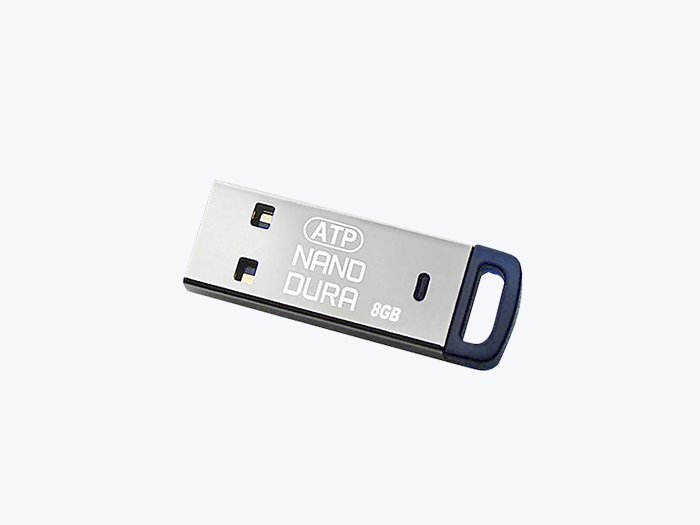

The ATP NANODURA is an industrial USB drive built for mission-critical embedded applications. Suitable for compact systems installed in limited spaces, NANODURA's rugged metal housing and ATP System in Package (SiP) technology offer rugged durability for dependable use in extreme operating temperatures ranging from -40°C to 85°C and resistance to water/moisture, vibration, shock and electrostatic discharge (ESD). NANODURA offers up to 60,000 program/erase (P/E) cycles, which is 20X higher than other USB drives in the market. The extraordinary endurance, advanced bad block algorithm and global wear leveling make NANODURA an excellent boot drive and ideal storage solution for applications with high performance and high data retention requirements. Hot swap support guarantees maximum availability, allowing drive removal and replacement without shutting down the system.

Specifications

NANODURA
Product LineB800PiB600Sc
InterfaceCompatible with USB 2.0 (480 Mbps)Compatible with USB 2.0 (480 Mbps)
Flash TypeSLCMLC
Form FactorUSB Flash Drive (USB 2.0)USB Flash Drive (USB 2.0)
Operating Temperature (Tcase)1-40°C to 85°C0°C to 70°C
Power Loss Protection OptionsFirmware BasedFirmware Based
Optional SED Features--
Capacity512 MB to 8 GB8 GB to 16 GB
Performance Sequential Read (MB/s) up to3125
Performance Sequential Write (MB/s) up to2118
Performance Random Reads IOPS (4K, QD32) up to--
Performance Random Writes IOPS (4K, QD32) up to--
Endurance (TBW)2 up to 192 TB19.2 TB
Reliability MTBF @ 25°C>5,000,000 hours>2,000,000 hours
Data Retention @ 25°C310 years (with 10% P/E Cycles)-
Reliability Number of Insertions10,000 minimum10,000 minimum
Power Consumption5V Input Power5V Input Power
Dimensions: L x W x H (mm)34 x 12.2 x 4.534 x 12.2 x 4.5
CertificationsCE, FCC, RoHSCE, FCC
Warranty5 years2 years
1 Case Temperature, the composite temperature as indicated by SMART temperature attributes.
2 Under highest Sequential write value. May vary by density, configuration and applications.
3  Data retention value may vary across different temperature ranges. It is based on experimental results and should be used only for reference.

Product Line

Technologies & Add-On ServicesProduct Line
PremiumSuperior
S.M.A.R.T.
S.M.A.R.T.
available
available
Advanced Wear Leveling
Advanced Wear Leveling
available
available
Industrial Temperature
Industrial Temperature
available
SiP (System in Package)
SiP (System in Package)
available
available
customizable:Customization option available on a project basis.
