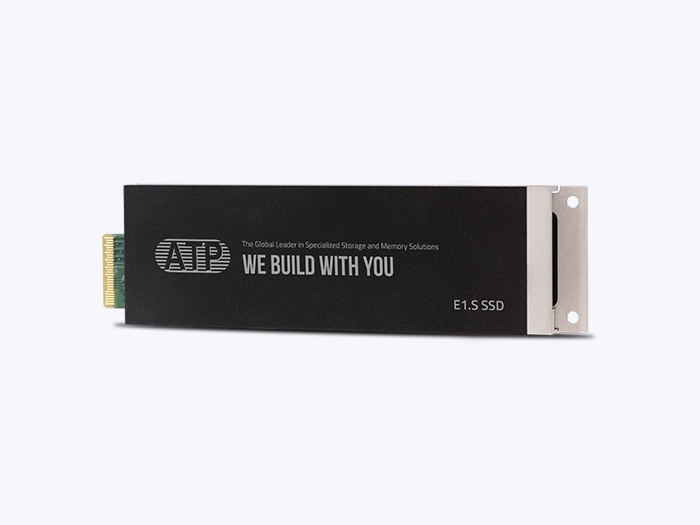

PCIe® Gen4 NVMe E1.S SSD

Key Features

  • PCIe Gen4 x4 interface
  • E1.S 9.5 mm symmetric enclosure
  • Industrial temperature operable
  • Thermal Management Solution
  • MCU-based Power Loss Protection Design with Level 4 (data-in-flight) protection
  • Hot-pluggable/Hot-swappable

Description

Built with 176-layer NAND and boasting an impressive 5,000+ program/erase (P/E) cycle endurance, ATP's E1.S SSDs are designed for optimal performance leveraging cutting-edge PCIe® interface and NVMe protocol technologies.

Engineered for 1U Edge servers, ATP's E1.S SSDs are designed for vertical placement in small-footprint systems, allowing up to 6 to 12 drives in a 1U chassis. They support hot swapping/hot plugging for easy serviceability and replacement of drives while the system is on.

High cross-temperature reliability translates to low bit errors and better transmission accuracy for higher data integrity.

Housed in a 9.5 mm symmetric enclosure, ATP’s E1.S SSDs are a result of thermal management solutions. The enclosure features customized hardware and sustained performance firmware tuning, making it an ideal solution to meet the demanding requirements of hyperscale architecture.

SpecificationsLatest Update: 2024-03-21 13:19

PCIe® Gen4 NVMe E1.S SSD
Product LineSuperior
NamingN651Si
InterfacePCIe G4 x4
Flash Type3D TLC
Form FactorE1.S
Operating Temperature-40°C to 85°C
Power Loss Protection OptionsHardware + Firmware Based
Optional SED FeaturesAES 256-bit Encryption, TCG Opal 2.0
Capacity960 GB to 7,680 GB
Sequential Read (MB/s) up to6,100
Sequential Write (MB/s) up to6,000
Random Reads IOPS up to870,000
Random Writes IOPS up to1,200,000
Endurance (TBW)1 up to14,000 TB
Reliability MTBF @ 25°C>2,000,000 hours
Dimensions (mm)118.75 x 33.75 x 9.5
CertificationsRoHS/VCCI/CE/FCC/UKCA
Warranty5 years

1. The endurance calculation is based on JESD219A Enterprise workload.

TechnologyView All Technologies

Technologies & Add-On ServicesProduct Line
Superior
S.M.A.R.T.
S.M.A.R.T.
available
Firmware-based Power Loss  Protection
Firmware-based Power Loss Protection
available
Hardware-based Power Loss Protection
Hardware-based Power Loss Protection
available
AutoRefresh
AutoRefresh
available
Advanced Wear Leveling
Advanced Wear Leveling
available
Dynamic Data Refresh
Dynamic Data Refresh
available
End-to End Data Path Protection
End-to End Data Path Protection
available
Auto-Read Calibration
Auto-Read Calibration
available
Secure Erase
Secure Erase
customizable
TCG Opal 2.0
TCG Opal 2.0
customizable
Industrial Temperature
Industrial Temperature
available
Anti-Sulfur Resistors
Anti-Sulfur Resistors
customizable
Conformal Coating
Conformal Coating
customizable
Joint Validation
Joint Validation
customizable
customizable:Customization option available on a project basis.

Downloads

  • ATP Gen4 E1.S NVMe product flyer
    English
    2024-03-11203.53KB
