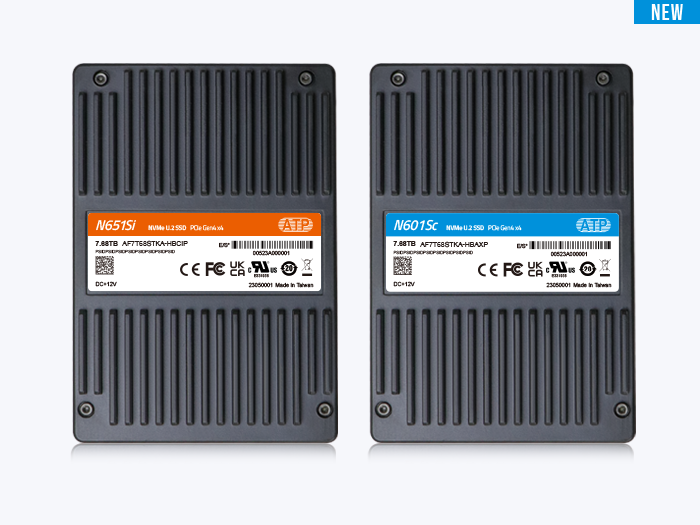

PCIe® Gen4 NVMe U.2 SSD

Key Features

  • 15 mm Fin-Type Heatsink Design
  • MCU-based Power Loss Protection Design with Level 4 (data-in-flight) protection*
  • Self-Encrypting Drive (SED) with AES 256-bit Encryption, TCG Opal 2.0*
  • End-to-End Data Path Protection
  • Hot-swappable
  • pSLC mode support*
  • Anti-sulfuric resistor support*
  • * May vary by product and project support

Description

ATP U.2 SSDs support the NVMe™ protocol on the high-speed PCI Express® (PCIe®) Gen4 x4 interface. Capacities range from 960 GB to 7.68 TB and can either be I-Temp (40°C to 85°C: N651Si) or C-Temp (0°C to 70°C: N601Sc) operable to meet the varied usage requirements of embedded/ industrial PCs, networking systems, and other function-critical segments.

The high-speed PCIe Gen 4 x4 interface offers twice the bandwidth of the previous generation, enabling the N651Si / N601Sc U.2 SSDs to transfer data faster. ATP’s PCIe Gen 4 SSDs use x4 lanes for a maximum bandwidth of 8 GB/s.

The 15 mm fin-type heatsink design offers effective heat dissipation to ensure optimal sustained performance.

SpecificationsLatest Update: 2023-08-07 14:54

PCIe® Gen4 NVMe U.2 SSD
Product LineSuperiorSuperior
NamingN651SiN601Sc
InterfacePCIe G4 x4PCIe G4 x4
Flash Type3D TLC3D TLC
Form Factor2.5"2.5"
Operating Temperature-40°C to 85°C0°C to 70°C
Power Loss Protection OptionsHardware + Firmware BasedHardware + Firmware Based
Optional SED FeaturesAES 256-bit Encryption, TCG Opal 2.0AES 256-bit Encryption, TCG Opal 2.0
Capacity960 GB to 7.68 TB960 GB to 7.68 TB
Sequential Read (MB/s) up to6,0006,000
Sequential Write (MB/s) up to5,5005,500
Random Reads IOPS up to819,000819,000
Random Writes IOPS up to1,177,0001,177,000
Endurance (TBW)1 up to12,300 TB12,300 TB
Reliability MTBF @ 25°C>2,000,000 hours>2,000,000 hours
Dimensions (mm)100 x 69.85 x 15100 x 69.85 x 15
CertificationsRoHS/VCCI/CE/FCC/UKCARoHS/VCCI/CE/FCC/UKCA
Warranty2 years2 years

1. The actual lifetime of the product will depend on the JESD219A enterprise workload.

Ordering information

Hot Items Ordering Information
Product Line Capacity1 Operating Temperature2 Power Loss Protection3 SED4 P/N
N601Sc 960GB -0°C to 70°C Hardware + Firmware Based - AF960GSTKA-HBAXP
N601Sc 1920GB -0°C to 70°C Hardware + Firmware Based - AF1T92STKA-HBAXP
N601Sc 3840GB -0°C to 70°C Hardware + Firmware Based - AF3T84STKA-HBAXP
N601Sc 7680GB -0°C to 70°C Hardware + Firmware Based - AF7T68STKA-HBAXP
N651Si 960GB -40°C to 85°C Hardware + Firmware Based - AF960GSTKA-HBCIP
N651Si 1920GB -40°C to 85°C Hardware + Firmware Based - AF1T92STKA-HBCIP
N651Si 3840GB -40°C to 85°C Hardware + Firmware Based - AF3T84STKA-HBCIP
N651Si 7680GB -40°C to 85°C Hardware + Firmware Based - AF7T68STKA-HBCIP
N651Si 960GB -40°C to 85°C Hardware + Firmware Based V AF960GSTKA-HBDIP
N651Si 1920GB -40°C to 85°C Hardware + Firmware Based V AF1T92STKA-HBDIP
N651Si 3840GB -40°C to 85°C Hardware + Firmware Based V AF3T84STKA-HBDIP
N651Si 7680GB -40°C to 85°C Hardware + Firmware Based V AF7T68STKA-HBDIP
1 Amount of actual usable storage that can be utilized.
2 Refers to Case Temperature range during device operation, as indicated by SMART temperature attributes.
3 Hardware + Firmware-based power loss protection design with Level 4 (data-in-flight) protection; Firmware-based power loss protection design with Level 1 (data-at-rest) protection.
4 Allows data written to and read from the SSD to be constantly and automatically encrypted and decrypted. Conforms to TCG Opal 2.0 and uses AES 256-bit HW encryption.



TechnologyView All Technologies

Technologies & Add-On ServicesProduct Line
Superior
S.M.A.R.T.
S.M.A.R.T.
available
Firmware-based Power Loss  Protection
Firmware-based Power Loss Protection
available
Hardware-based Power Loss Protection
Hardware-based Power Loss Protection
available
AutoRefresh
AutoRefresh
available
Advanced Wear Leveling
Advanced Wear Leveling
available
Dynamic Data Refresh
Dynamic Data Refresh
available
End-to End Data Path Protection
End-to End Data Path Protection
available
Auto-Read Calibration
Auto-Read Calibration
available
Secure Erase
Secure Erase
customizable
TCG Opal 2.0
TCG Opal 2.0
customizable
Industrial Temperature
Industrial Temperature
available
Anti-Sulfur Resistors
Anti-Sulfur Resistors
customizable
Conformal Coating
Conformal Coating
customizable
Joint Validation
Joint Validation
customizable
customizable:Customization option available on a project basis.
