PCIe® Gen4 NVMe CFexpress Card

Key Features

  • Superior Read/Write performance
  • Self-Encrypting Drive (SED) with AES 256-bit Encryption, TCG Opal 2.0*
  • Host Memory Buffer (HMB) support
  • Hardware Write Protect*
  • * Optional, by project support

Description

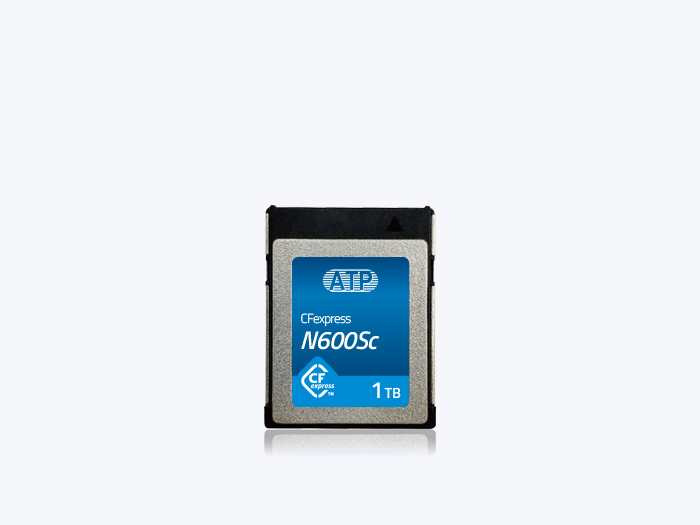

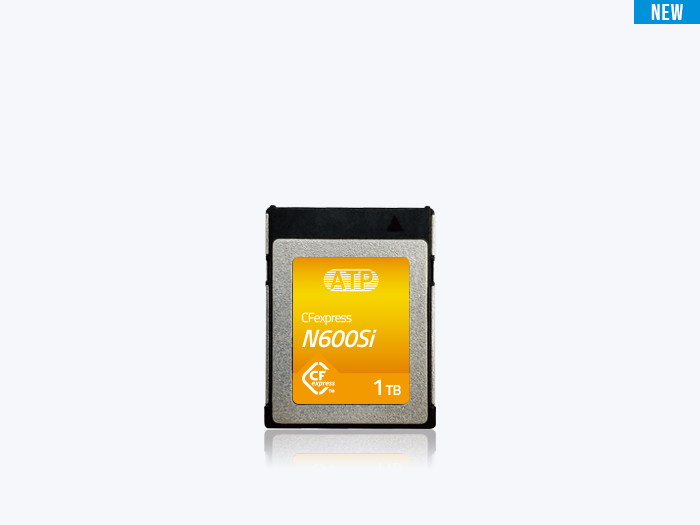

ATP N751Pi/N651Si/N601Sc CFexpress Type B memory cards support the NVMe™ protocol and utilize the PCIe® 4.0 x2 interface. With two PCIe 4.0 lanes, the ATP N751Pi/N651Si/N601Sc  surpasses standard configurations of other cards using the PCIe 3.0 x2 interface. It delivers impressive high-speed sequential read/write speeds of up to 3500/3200 MB/s.

Built with 3D TLC flash (available with pSLC  by project support) , ATP CFexpress Type B memory cards offer big storage for IPC/embedded, automation, networking, test and measurement, and transportation systems as well as other applications that require excellent reliability, endurance, and performance.

The N751Pi/N651Si/N601Sc features Host Memory Buffer (HMB) support to improve random read performance, optional  TCG Opal 2.0 and hardware write-protect security, and software RAID 0, 1 compatibility. To ensure optimal sustained performance, the N651Si/ N601Sc Series CFexpress cards continuously monitor device temperature and enable firmware-based throttling that adjusts performance without drastic drops.

SpecificationsLatest Update: 2024-04-09 15:52

PCIe® Gen4 NVMe CFexpress Card
Product LinePremiumSuperiorSuperior
NamingN751PiN651SiN601Sc
InterfacePCIe G4 x2PCIe Gen4 x 2PCIe Gen4 x 2
Flash Type3D TLC (pSLC mode)3D TLC3D TLC
Form FactorCFexpress Type BCFexpress Type BCFexpress Type B
Operating Temperature-40°C to 85°C-40°C to 85°C0°C to 70°C
Power Loss Protection Options Firmware BasedFirmware BasedFirmware Based
Optional SED FeaturesAES 256-bit Encryption, TCG Opal 2.0AES 256-bit Encryption, TCG Opal 2.0AES 256-bit Encryption, TCG Opal 2.0
Capacity40 GB to 320 GB128 GB to 1 TB128 GB to 1 TB
Sequential Read (MB/s) up to3,5003,5003,500
Sequential Write (MB/s) up to3,1003,2003,200
Random Reads IOPS up to770,000770,000770,000
Random Writes IOPS up to735,000750,000750,000
Endurance (TBW)1 up to4,410 TB1,000 TB1,000 TB
Reliability MTBF @ 25°C>2,000,000 hours>2,000,000 hours>2,000,000 hours
Reliability Number of Insertions10,000 minimum10,000 minimum10,000 minimum
Dimensions (mm)29.6 x 38.5 x 3.829.6 x 38.5 x 3.829.6 x 38.5 x 3.8
CertificationsCE, FCC, RoHS, UKCACE, FCC, RoHS, UKCACE, FCC, RoHS, UKCA
Warranty 5 years2 years2 years

1 Under highest Sequential write value. May vary by density, configuration and applications.

TechnologyView All Technologies

Technologies & Add-On ServicesProduct Line
PremiumSuperior
S.M.A.R.T.
S.M.A.R.T.
available
available
Firmware-based Power Loss  Protection
Firmware-based Power Loss Protection
available
available
AutoRefresh
AutoRefresh
available
available
Advanced Wear Leveling
Advanced Wear Leveling
available
available
Dynamic Data Refresh
Dynamic Data Refresh
available
available
End-to End Data Path Protection
End-to End Data Path Protection
available
available
Auto-Read Calibration
Auto-Read Calibration
available
available
Secure Erase
Secure Erase
customizable
customizable
TCG Opal 2.0
TCG Opal 2.0
customizable
customizable
Industrial Temperature
Industrial Temperature
available
available
Anti-Sulfur Resistors
Anti-Sulfur Resistors
customizable
Conformal Coating
Conformal Coating
customizable
customizable
Complete Drive Test
Complete Drive Test
available
available
Joint Validation
Joint Validation
customizable
customizable
customizable:Customization option available on a project basis.

Downloads

  • ATP CFexpress card product flyer
    English
    2024-02-29238.61KB
