Defense / Aerospace

Tough and Resilient

Memory solutions for defense and aerospaceMemory solutions for defense and aerospace
Solutions to Unique ChallengesTechnologiesRecommended ProductsFeatured StoriesDownloads

Solutions to Unique Challenges

Memory and storage devices for defense systems require high reliability and long service life to capably handle the demands of mission-critical tasks over extended periods of time.

These devices typically operate in hostile environments and are subjected to severe physical, thermal, and electro-mechanical stresses. They are also usually exposed to power challenges, especially when deployed in areas where power is unstable.

System designs are highly diverse and proprietary without commercially high volume, requiring diverse form factors per individual case.

ATP Electronics provides a wide range of rugged, wide-temp solutions without a high minimum order quantity (MOQ), with outstanding longevity and flexible customization to comply with exacting standards.

Unique Challenges & Atp Solutions

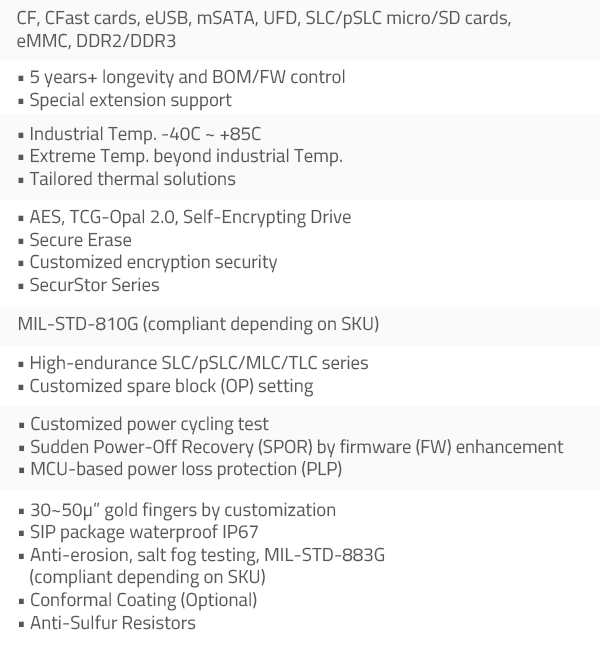

Legacy form factors
  • CF, CFast cards, eUSB, mSATA, UFD, SLC/pSLC micro/SD cards, eMMC, DDR2/DDR3
Lengthy development cycle
  • 5 years+ longevity and BOM/FW control
  • special extension support
High ambient temperature
  • Industrial Temp. -40C ~ +85C
  • Extreme Temp. beyond industrial Temp.
  • Tailored thermal solutions
Robust security standard
  • AES, TCG-Opal 2.0, Self-Encrypting Drive
  • Secure Erase
  • Customized encryption security
  • SecurStor Series
Robustness against shock and vibration
  • MIL-STD-810G (compliant depending on SKU)
Robustness in lifetime
  • High-endurance SLC/pSLC/MLC/TLC series
  • Customized spare block (OP) setting
Robustness against unstable power supply
  • Customized power cycling test
  • Sudden Power-Off Recovery (SPOR) by firmware (FW) enhancement
  • MCU-based power loss protection (PLP)
Robustness against environmental Erosion
  • 30~50µ” gold fingers by customization
  • SIP package waterproof IP67
  • Anti-erosion, salt fog testing, MIL-STD-883G (compliant depending on SKU)
  • Conformal Coating (Optional)
  • Anti-Sulfur Resistors
Note: Listed ATP solutions are provided for reference only and may change without notice. Contact an ATP Distributor or Representative in your area to discuss how ATP can meet your specific requirements.

The Aerospace segment often stands shoulder to shoulder with Defense and share many of the same challenges, including extreme temperatures, shock/vibration, and harsh environments.

Whether in the air, in space, or in ground control, memory and storage devices are exposed to diverse hazards that can corrupt data, cause errors, and even compromise crew and passenger safety.

ATP Electronics specializes in optimizing memory and storage devices for the aerospace segment. ATP offers a comprehensive portfolio of ruggedized, robust, and high endurance solutions, without a high minimum order quantity (MOQ). These solutions include industrial grade, customizable, and commercial off-the-shelf (COTS) modules that are meticulously tested to meet specific application requirements.

Unique Challenges & Atp Solutions

Legacy form factors
  • CF, CFast cards, eUSB, mSATA, UFD, SLC/pSLC micro/SD cards, eMMC, DDR2/DDR3
Lengthy development cycle
  • 5 years+ longevity and BOM/FW control
  • special extension support
High ambient temperature
  • Industrial Temp. -40C ~ +85C
  • Extreme Temp. beyond industrial Temp.
  • Tailored thermal solutions
Robust security standard
  • AES, TCG-Opal 2.0, Self-Encrypting Drive
  • Secure Erase
  • Customized encryption security
  • SecurStor Series
Robustness against shock and vibration
  • MIL-STD-810G (compliant depending on SKU)
Robustness in lifetime
  • High-endurance SLC/pSLC/MLC/TLC series
  • Customized spare block (OP) setting
Robustness against unstable power supply
  • Customized power cycling test
  • Sudden Power-Off Recovery (SPOR) by firmware (FW) enhancement
  • MCU-based power loss protection (PLP)
Robustness against environmental Erosion
  • 30~50µ” gold fingers by customization
  • SIP package waterproof IP67
  • Anti-erosion, salt fog testing, MIL-STD-883G (compliant depending on SKU)
  • Conformal Coating (Optional)
  • Anti-Sulfur Resistors
Note: Listed ATP solutions are provided for reference only and may change without notice. Contact an ATP Distributor or Representative in your area to discuss how ATP can meet your specific requirements.

Featured Technologies

Anti-Sulfur Resistors
ATP DRAM modules and NAND flash storage products offer an anti-sulfur resistor option to prevent the corrosive effects of sulfur contamination, guaranteeing continued dependable performance for a long time.
Conformal Coating

Protects electronic circuits with a coating of the chemical compound Parylene to resist dust, chemical contaminants, extreme temperature, moisture and corrosion.

Read more

Thicker Gold Finger

30µ”-thick gold plating of the DRAM contact optimizes signal transmission quality between the connector and DRAM modules.

Hardware-Based In-Flight-Data Power Loss Protection
#ATP EXCLUSIVE
This hardware-based power failure protection prevents data loss during a power loss event by ensuring that the last read/write/erase command is completed and data is stored safely in non-volatile flash memory. Select NVMe modules and SATA SSDs feature a new microcontroller unit (MCU)-based design that allows the PLP array to perform intelligently in various temperatures, power glitches and charge states to protect both device and data.
Read more
Firmware-Based Data-At-Rest Power Loss Protection
The firmware-based power failure protection effectively protects data written to the device prior to power loss. After the host receives a signal from the device that the WRITE operation has been successfully completed, newly written as well as previously written data are protected even if a sudden power loss occurs.
SED (AES 256-bit Encryption, TCG Opal 2.0)
TCG Opal Secirity Subsystem Class (SSC) 2.0 is a set of specifications for self-encrypting drives that present a hierarchy of security management standards to secure data from theft and tampering. Security features include hardware-based data encryption, pre-boot authentication (PBA) and AES-128/256 data encryption to protect the confidentiality of data at rest.
Software Secure Erase
Software Secure Erase wipes out all user data, overwrites all locations, and prevents the retrieval or recovery of erased data. This feature is activated using an ATA/NVM command to trigger a Fast Erase or Fast Erase + Purge (overwrite) for all flash physical blocks containing user data, such as user data, spare, wear leveling, and bad blocks, as well as all flash blocks containing metadata. Overwriting makes data unrecoverable by replacing all data (user data as well as areas that are not accessible to the user) with patterns or non-sensitive data.
SecurEncrypt

AES-256 encryption for the User Data area.

Learn more

Industrial Temperature
Operational stability in extreme temperatures from -40°C to 85°C.
View All Technologies

Recommended Products

Specifications

View product
PCIe® Gen4 NVMe E1.S SSD
Product LineSuperior
NamingN651Si
InterfacePCIe G4 x4
Flash Type3D TLC
Form FactorE1.S
Operating Temperature-40°C to 85°C
Power Loss Protection OptionsHardware + Firmware Based
Optional SED FeaturesAES 256-bit Encryption, TCG Opal 2.0
Capacity960 GB to 7.68 TB
Sequential Read (MB/s) up to6,400
Sequential Write (MB/s) up to6,100
Random Reads IOPS up to1,000,000
Random Writes IOPS up to1,200,000
Endurance (TBW)1 up to79,000 TB
Reliability MTBF @ 25°C>3,000,000 hours
Dimensions (mm)118.75 x 33.75 x 9.5
CertificationsRoHS/VCCI/CE/FCC/UKCA
Warranty5 years

1. Under highest Sequential write value. May vary by density, configuration and applications.
